Home Shopping Cutting Machine Plasma CUT-100
Cutting Machine Plasma CUT-60
Back to products

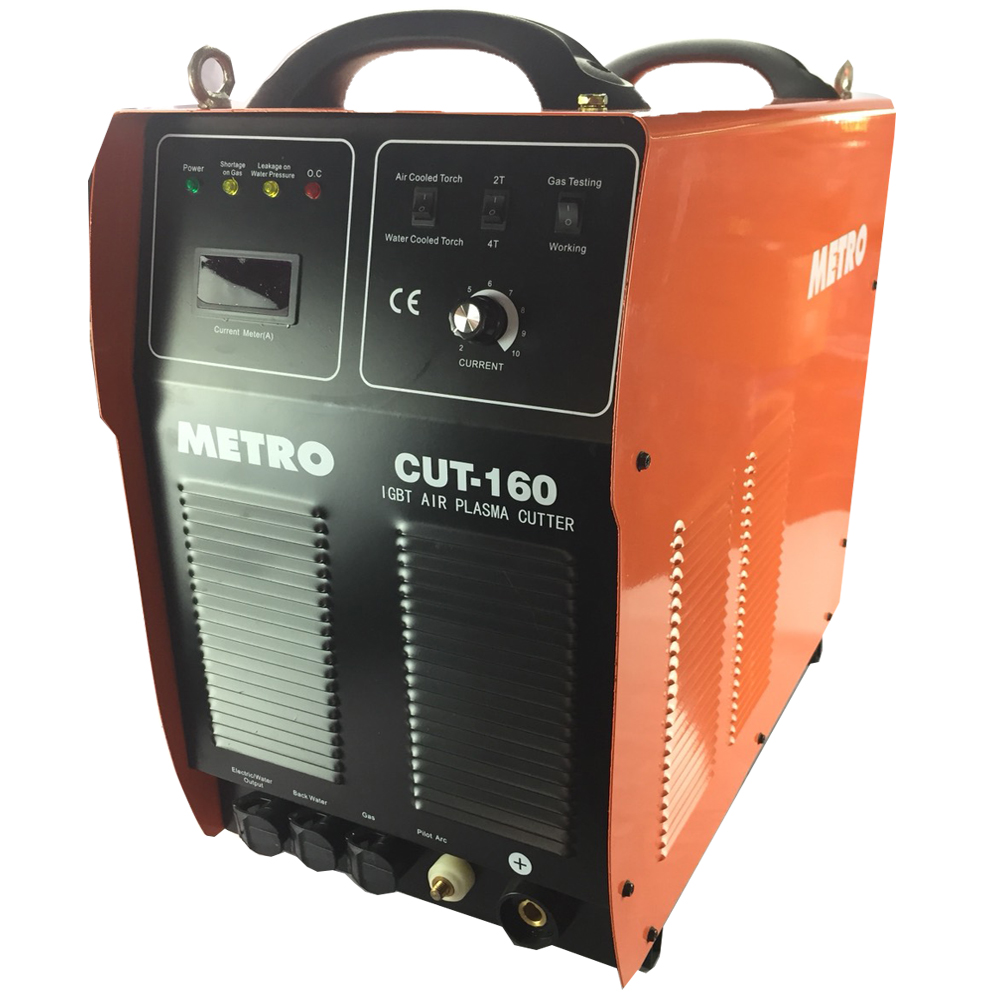

Cutting Machine Plasma CUT-160

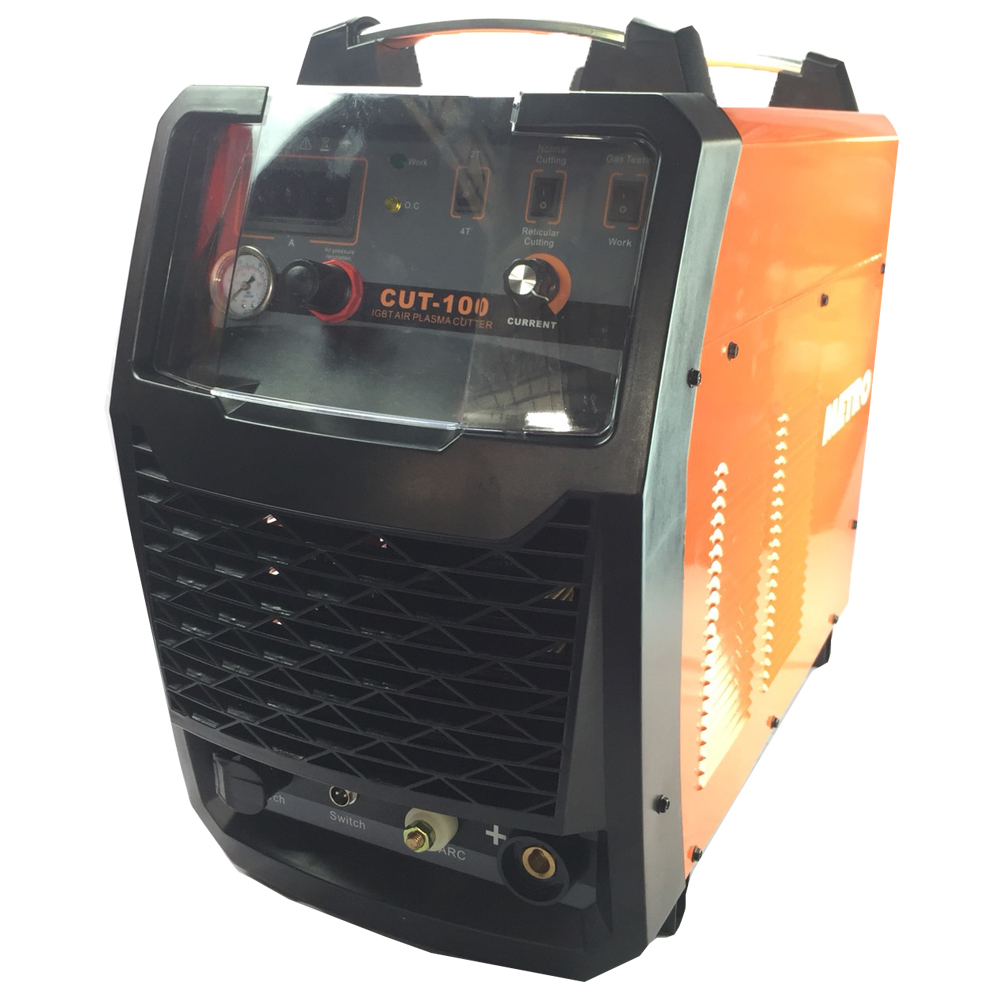

Cutting Machine Plasma CUT-100

PleaseRegister/Loginto see the price
Registration Form
User name :
Email :
Password :
Confirm Password :
Already Registered ! Click Here to login.
Login Form
User name :
Password :

Code No. ZF-002-011

Add to wishlist
Categories: Shopping, เครื่องตัด
Share:
  • Description
  • Additional information
  • Shipping & Delivery
Description

Specification : สเปค

Prameter

CUT-100

Rated input voltage (V) แรงดันไฟเข้า

3 Phase AC380V±15%

Rated Frequency (Hz) อัตราความถี่

50/60

Rated input capacity (KVA) อัตรากระแสไฟ

15

No-load voltage (V) แรงดันไฟขณะไร้ภาระ

260

Output current (A) กระแสไฟ

30~100

Rated working voltage (V) อัตราแรงดันไฟในการเชื่อม

120

Duty cycle (%) อัตราความสามารถการทำงาน

80

Efficiency (%) ประสิทธิภาพ

85

Power factor ประสิทธิภาพทางไฟ

0.93

Pressure of compressed air แรงดันลมที่ใช้

4-5 bar

Capacity of compressed air ปริมาณลมที่ใช้

120 lit/min

Weight (Kg) น้ำหนัก

45

Overall dimension (mm) ขนาดเครื่อง

665 x 325 x 585



Guide of Welding Different Metals : คู่มือการเชื่อมโลหะต่างชนิด

Material of Work Piece

ประเภทชิ้นงาน

Thickness (mm)

ความหนาชิ้นงาน

Arc Start Method

หลักการเริ่มต้นอาร์ค

Adjustment Current (A)

กระแสไฟเชื่อม

Suitable Model

รุ่น

Cabon Steel, Stainless Steel, Alloy Steel 1.0-20.0 Un-Touch 20~100

CUT-100

Aluminum, Copper, Copper Alloy, Aluminum Alloy

Perfect cutting on the half thickness of carbon steel, stainless steel and alloy steel, when choosing available model.
Additional information
Weight 45 kg
Shipping & Delivery

wd-ship-1
wd-ship-2

เงื่อนไขการจัดส่งสินค้า

  •  ลูกค้าจำเป็นต้องระบุที่อยู่สำหรับจัดส่งในสถานที่ที่มีผู้สามารถรับและรับทราบพัสดุภัณฑ์ได้.
  • บริษัทฯจะสั่งให้พนักงานขนส่งหรือบริษัทขนส่งไม่ทิ้งพัสดุไว้ที่ที่อยู่สำหรับจัดส่งโดยไม่ได้รับอนุญาตจากผู้รับสินค้า.

Related products

ลวดเชื่อม MIG GUNTECH SILICON BRONZE (15 KGS./Roll)

Shopping, ลวดเชื่อม
Code No. GT-001-026
Add to wishlist
Add to cart
Quick view

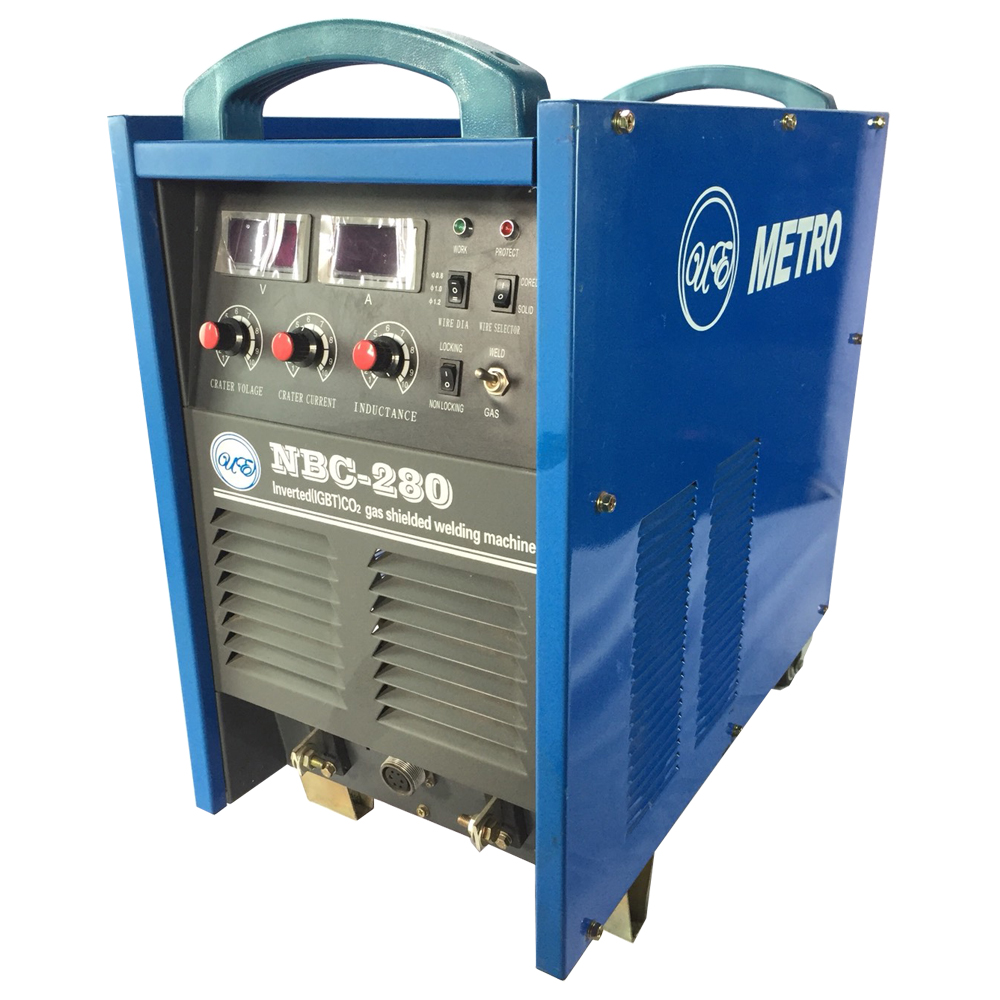

NBC-280 (Invertor) METRO

Shopping, เครื่องเชื่อม
Code No. ZD-003-111
Add to wishlist
Add to cart
Quick view

Welding Machine Pluse TIG Invertor:TIG-315P AC/DC

Shopping, เครื่องเชื่อม
Code No. ZD-003-061
Add to wishlist
Add to cart
Quick view

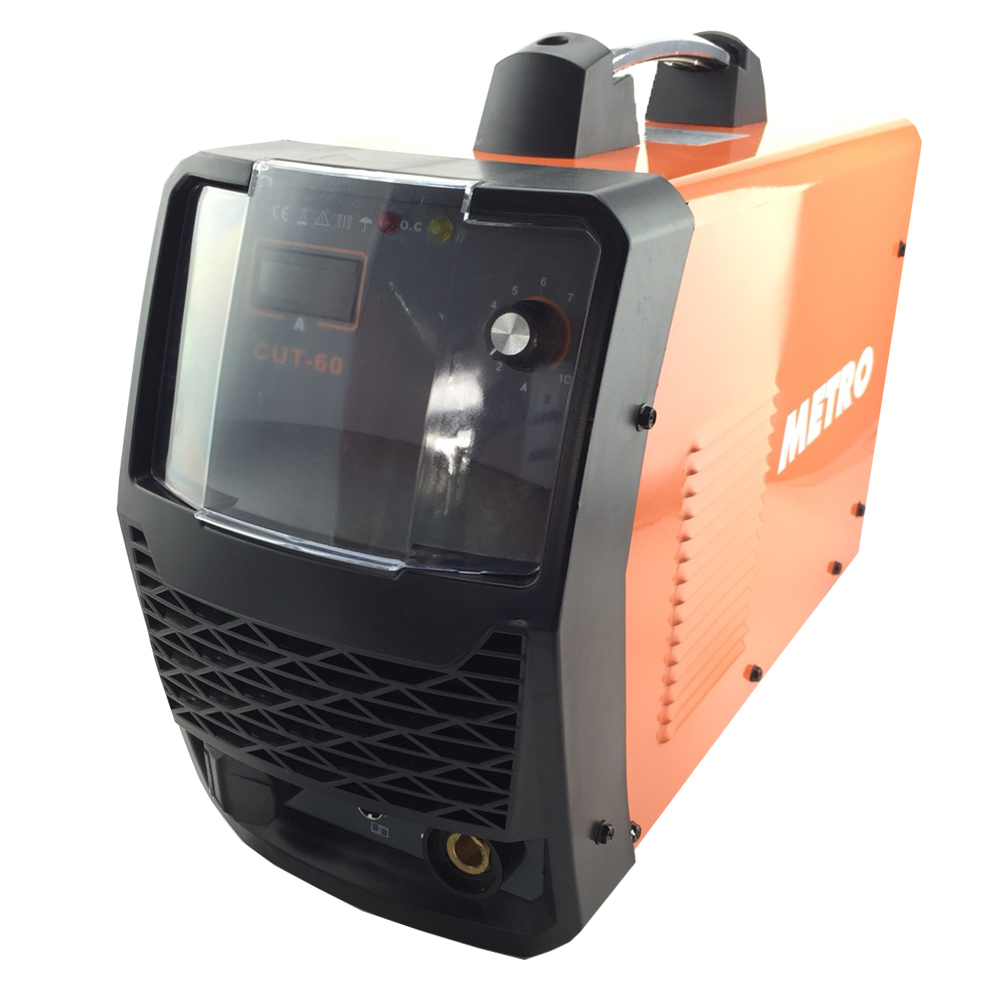

Cutting Machine Plasma CUT-60

Shopping, เครื่องตัด
Code No. ZF-002-010
Add to wishlist
Add to cart
Quick view

Welding Machine DC TIG Invertor:TIG-200S

Shopping, เครื่องเชื่อม
Code No. ZD-003-062
Add to wishlist
Add to cart
Quick view

Welding Machine MIG250FS 220V

Shopping, เครื่องเชื่อม
Code No. ZD-003-132
Add to wishlist
Add to cart
Quick view

GOUGING TORCH AEC-5000-1 PROFAX

Shopping, อุปกรณ์การเชื่อม
Standard Features :
* Unique valve design * Easy field repair
* Special high impact, heat resistant material * Available w/7' swivel or non-swivel
   cable assembly
* Special  hard copper alloy w/excellent electrical conductivity * Optional 12' swivel
   cable assembly available
Add to wishlist
Add to cart
Quick view

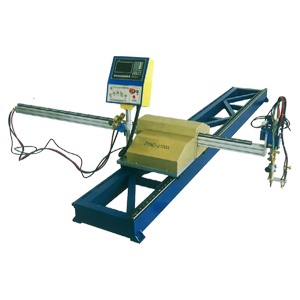

Gantry CNC Cutting Machine
