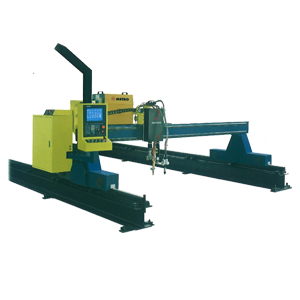

Gantry CNC Cutting Machine
Gantry CNC Cutting Machine
We provide high quality Gantry CNC Cutting machines with multi-options.High quality comes from our production process and the components we use.The main features are as follow:
1.The Gantry Beam has been heat treated to eliminate the internal stress so as to reduce the deformation and make it long life.
2.Drive gear and rack have realized elastic meshing transmission without gap so as to ensure the precision of movement.
3.Double side drivers ensure the move stability.
4.Panasonic Servo Motor and Driver are used.
5.Germany NEUGART Planetary Reducer is used.
Multi-options means you can choose flame only,one flame,two flame or multi-flame,or Plasma only,one Plasma,two plasma,or Multi-plasma,or Flame & plasma,according to your requirement.You also can choose the control system,Hypertherm or Star Fire,and choose the Plasma Cutting Power Source,Hypertherm or metro.

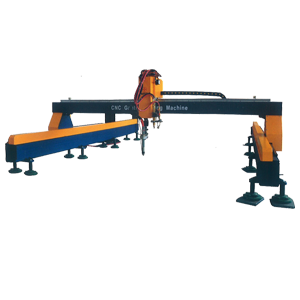

MINI Gantry CNC Cutting Machine
Table Stable Plasma Cutting Machine
- Features
1.Steel square tube welded beam to ensure solid and stable; Precision process to prevent the deformation.Steel square tube machine support,solid and easy to adjust.
2.Transmit is through gearing rack,using the precision planetary reducer made in taiwan.The cylinder rail is also made in Taiwan.
3.Control system is made by Sino-USA joint venture,"7" LCD monitor, English operation manual acailable.High precision Step motor and diver system ensure the machine's stbility during high speed running.
Table Stable Plasma Cutting Machine
Table Stable Plasma Cutting Machine
- Features
1.Steel square tube welded beam to ensure solid and stable; Precision process to prevent the deformation.Steel square tube machine support,solid and easy to adjust.
2.Transmit is through gearing rack,using the precision planetary reducer made in taiwan.The cylinder rail is also made in Taiwan.
3.Control system is made by Sino-USA joint venture,"7" LCD monitor, English operation manual acailable.High precision Step motor and diver system ensure the machine's stbility during high speed running.
ZYNC 2100W Small-Scaie CNC Cutting Machine
When Gantry CNC Cutting Machine is too big,and portable CNC is too small,this ZYNIC-2100 Series machine will be the right one for you.
The characteristics as follow:
1.Basic Rail made by H-beam steel completely.
2.Rail guide made in Taiwan.
3.Starfire or Start Sherpon System for option.
4.Gas Solenoid Valve made in ltaly.
5.Fastcam program provided.
6.Flame Torch lift by power with anti-collision device.
7.THC control device and system for Plasma cutting.
8.Operation Panel is SH-2012AH/QG.
9.High quality beam for assembling flame & plasma torches.
10.Reliable,Stable,High Accuracy,Anti-Electromagnetic Interruption
เครื่องตัดซีเอ็นซี ( CNC plate cutting machine )
ZYNC-1200W Portable CNC Cutting Machine
For steel sheet width within 1500mm, and length less than 5000mm,you can choose ZYNIG-1200w portable CNC cutting machines.
The characteristics as follow:
1.Basic Rail made by H-beam steel completely.
2.Rail guide made in Taiwan.
3.Starfire or Start Sherpon System for option.
4.Gas Solenoid Valve made in ltaly.
5.Fastcam program provided.
6.Flame Torch lift by power with anti-collision device.
7.THC control device and system for Plasma cutting.
8.Operation Panel is SH-201 2AH/QG.
9.High quality beam for assembling flame & plasma torches.
10.Reliable,Stable,High Accuracy,Anti-Electromagnetic Interruption
